IP55 JY Series Single Phase Induction Motor For High Starting
Torque Machine
Single Phase Induction Motor APPLICATIONS:
JY series single-phase capacitor start
induction
motor is widely used in air compressors. Their motors are suitable for
the situation that require the higher starting torque and the
limited starting current, refrigerators, medical apparatus and
other small machines which demand full-load starting torque and
limited and limited starting current.
These series motors are totally enclosed fan-cooled and have three

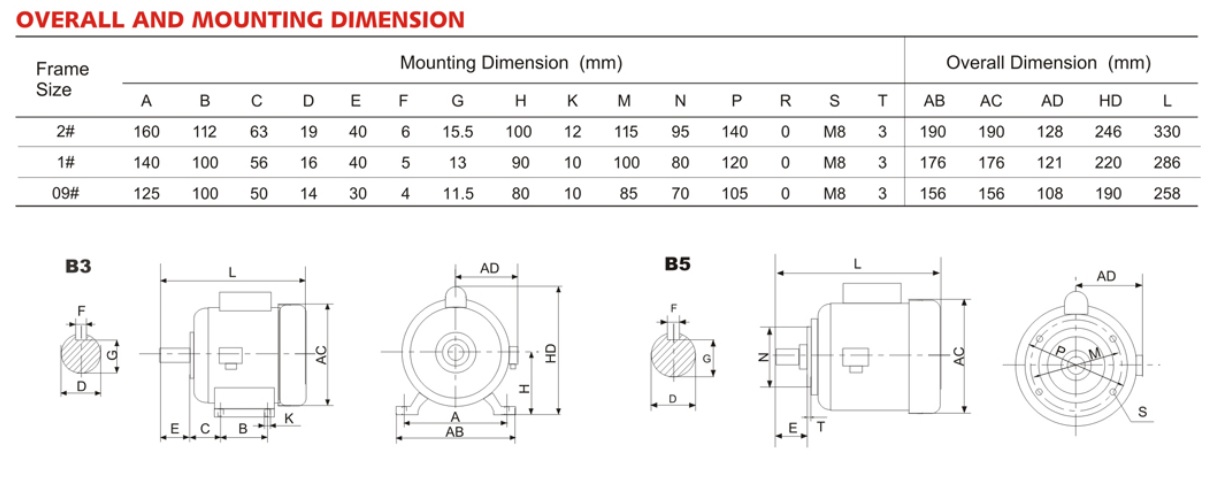

frame sizes,09,1,2.
The frames are made of cast iron or cast aluminum according to the
requests.
PERFORMANCE CHART:
| Model | Output HP KW | Voltage
(V) | Current
(A) | Speed
(r/min) | Eff
(%) | Power
Factor |
(Hz) | Tstart/Tn | Ist/In | Tmax/Tn |
| 220V 5OHz Synchronous Speed 3000r/min (2 Poles) |
| JY09B-2 | 0.18 | 0.25 | 220 | 2.15 | 2800 | 50 | 0.76 | 50 | 3.0 | 6.5 | 1.8 |
| JY09A-2 | 0.25 | 0.33 | 220 | 2.82 | 2800 | 53 | 0.76 | 50 | 3.0 | 6.5 | 1.8 |
| JY1B-2 | 0.79 | 0.5 | 220 | 3.74 | 2800 | 60 | 0.75 | 50 | 3.0 | 6.5 | 1.8 |
| JY1A-2 | 0.55 | 0.75 | 220 | 5.36 | 2800 | 63 | 0.74 | 50 | 3.0 | 7.0 | 1.8 |
| JY2B-2 | 0.75 | 1 | 220 | 6.81 | 2800 | 65 | 0.77 | 50 | 2.8 | 7.0 | 1.8 |
| JY2A-2 | 1.1 | 1.5 | 220 | 9.45 | 2800 | 67 | 0.79 | 50 | 2.8 | 7.0 | 1.8 |
| 220V 5OHz Synchronous Speed 3000r/min (2 Poles) |
| JY09B-4 | 0.12 | 0.17 | 220 | 1.7 | 1400 | 50 | 0.63 | 50 | 2.8 | 7.0 | 1.8 |
| JY09A-4 | 0.18 | 0.25 | 220 | 2.52 | 1400 | 53 | 0.65 | 50 | 2.8 | 6.5 | 1.8 |
| JY1B-4 | 0.25 | 0.33 | 220 | 3.2 | 1400 | 60 | 0.67 | 50 | 2.8 | 6.5 | 1.8 |
| JY1A-4 | 0.37 | 0.5 | 220 | 4.03 | 1400 | 63 | 0.72 | 50 | 2.8 | 7.0 | 1.8 |
| JY2B-4 | 0.55 | 0.75 | 220 | 5.12 | 1400 | 65 | 0.74 | 50 | 2.8 | 7.0 | 1.8 |
| JY2A-4 | 0.75 | 1 | 220 | 6.9 | 1400 | 67 | 0.76 | 50 | 2.8 | 7.0 | 1.8 |
OPERATING LIMITS:
Ambient temperature:-15℃＜0＜40℃
Ambient temperature: not exceed 1000meters
Rated voltage:220V
Rated frequency:50Hz/60Hz
Duty/Rating:Continuous(running)
Insulation class: Class B/F
Protection class: IP44/54
Cooling method: ICO141
Single Phase Induction Motor GUARANTEE:
Guarantee for one year from shipped on board date. During the
guarantee period, our company will provide free easy-damaged spare
parts for problems caused by our quality of production or raw
material, except the damageable spare parts caused by customer's
incorrect artificial operation. In addition, after expiration, our
company provides cost spare parts for maintenance.
OUR SERVICE:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services
from designing, printing to processing. Customers can provide the
design according to your request and sample making. Also, we can
advise how to make the products according to customers' target
prices.
FAQ:
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at
sight.
