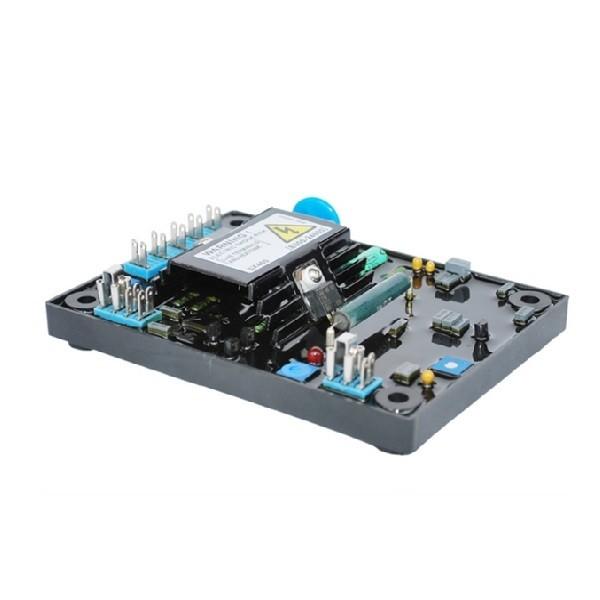

    Stamford AVR SX460 Automatic Voltage Regulator For Brushless Alternator / Generator

    Ask Lasest Price
    Brand Name : ZOZHI
    Model Number : SX460
    Certification : CCC
    Price : negotiated
    Supply Ability : 5000pcs
    • Product Details
    • Company Profile

    Stamford AVR SX460 Automatic Voltage Regulator For Brushless Alternator / Generator


    Stamford AVR SX460 Automatic Voltage Regulator For Brushless Alternator / Generator


    AVR


    Description:


    SX460 is a half-wave phase-controlled thyristor type Automatic Voltage Regulator(AVR)


    and forms part of the excitation system for a brushless alternator, such as Stamford or


    Stamford technical alternator.


    Technical Specification:


    Input Voltage jumper selectable 95-132V ac or 190-264V ac


    Frequency 50~60Hz


    output voltage Max 90VDC at 207VAC input


    Current Continuous 4ADC


    Intermittent 6A for 10 secs


    Resistance 15 ohms minimum


    Regulation +/- 1.0%



    InputVoltageJumper selectable 95-132V ac or 190-264V ac
    Frequency50-60 Hz nominal
    Phase1
    OutputVoltageMax 90V dc at 207V ac input
    CurrentContinuous 4A dc, intermittent 6A for 10 secs
    Resistance15 ohms minimum
    Regulation+/- 1.0%
    Thermal Drift0.05% per deg. C change in AVR ambient
    Typical system responseAVR response20ms
    Filed current to 90%80 ms
    Machine Volts to 97%300ms
    External voltage adjustment+/-10% with 1 k ohm 1-watt trimmer
    Under frequency protectionSetpoint95% Hz
    Slope170% down to 30 Hz
    Unit power dissipation12 watts maximum10 watts maximum
    Build-up voltage4 Volts @ AVR terminals
    EnvironmentalVibration20-100 Hz
    100Hz – 2kHz, 3.3g
    Operating temperature-40 to +70 Deg. C
    Relative Humidity 0-70 Deg.
    C
    95%
    Storage temperature-55 to +80 Deg. C

    More Products


    AVR R448AVR AS440MX321MX341
    AS440AS480GAVR12 GAVR 12EA05A
    R449R220R438R450


    AVR


    Guarantee:


    Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.


    Our service:


    1. Directly factory sale

    2.Quick response to 2-8hours, response rates over 92%
    3. 24 hours phone call is available, feel free to contact us.
    4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


    FAQ


    1. Q: What’s the MOQ?
    A: We accept one piece.

    2. Q: Are you a factory or trading company?
    A: We are a manufacturer.

    3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.

    4. Q: What’s the warranty period?
    A: 1 year.


    5. Q: What are the terms of payment?

    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
