230v 50hz Single Phase Electric Motor 0.75kw For Swimming / Spa Pool Motors

Ask Lasest Price
Brand Name :	ZOZHI
Model Number :	MYT712-2
Certification :	ISO
Price :	negotiated
Payment Terms :	T/T, L/C
Supply Ability :	10000pcs/month
Delivery Time :	25 working days after received your payment

Add to Cart

Product Details
Company Profile

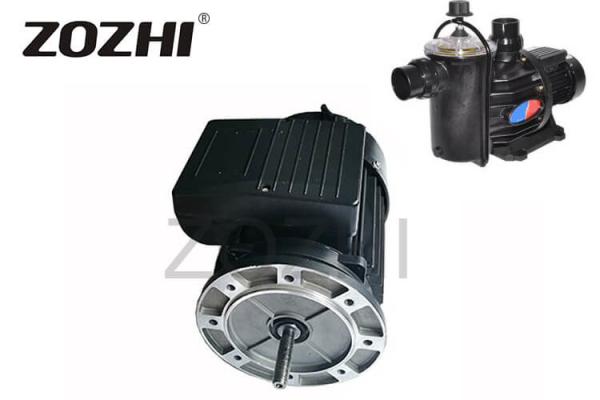

230v 50hz Single Phase Electric Motor 0.75kw For Swimming / Spa Pool Motors

Single Phase Induction Motor

swimming pool pump motor

DESCRIPTION

MYT712-2 1HP/0.75KW swimming and spa pool motor for swimming pool pump suitable for water recirculation and filtration for SPA and hot tubs, small and medium-sized swimming pools.

Model:MYT712-2

Power:0.75kw/1HP

Ambient temperature:-15℃≦0≦40℃

Protection:IP54

Insulation Class:B

Rated voltage:220V

Frequeny:50HZ

Speed:2800Rpm

PRODUCT SHOW

swimming pool pump motor

TECHNICAL DATA

Model	Power		Voltage(V)	Frequency (HZ)	Current (A)	Power Factor	Eff(%)	Speed (r/min)	Tstart/Tn	Tmax/Tn
	HP	KW
MYT711-2	0.75	0.55	220	50	3.88	0.92	70	2800	0.35	1.7
MYT712-2	1	0.75			5.15	0.92	72	2800	0.35	1.7
MYT801-2	1.5	1.1			7.02	0.95	75	2800	0.33	1.7
MYT802-2	2	1.5			9.44	0.95	76	2800	0.33	1.7

General data

Frame size	71
Housing material	Aluminum
Install model	According to the standard
Type of feet	Removable feet
Net weight	6.95 kg
Insulation class	FH(Standard)(Optional)
Protection degree	IP 55IP 56(Standard)(Optional)
Thermal protection	WithoutCustomizable(Standard)(Optional)
Rotation direction	ClockwiseCounter clockwise(Standard)(Optional)
Service duty	S1
Vibration level	A
Balance	Half-key balanced
Cable glands	1 - M18 × 1.5
Cooling	IC 411
Painting color	RAL 7024Customizable(Standard)(Optional)
Regulations	IEC / DIN / ISO / VDE / EN
Standard	IEC 60034
Environmental conditions
Ambient temperature	From -20°C to +40°C
Maximum altitude	1000 m above sea level

APPLICATION

A Single-phase induction motor is for swimming pool pumps with a strainer basket in its entrance. This particular design is suitable for filtering swimming pool water. It can remove the dirt from the pool water and keep the water of good quality.
For filtering of swimming pool water. It can remove the dirt from the pool water and keep the water of good quality.

swimming pool pump motor

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
