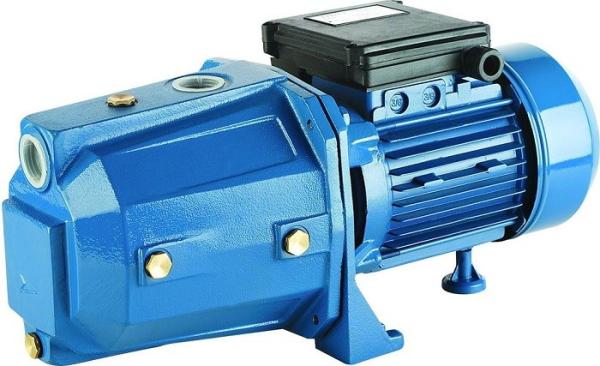

Electric Hydro Jet Pump 1hp Self Priming Jet Pump / Water Suction
Pump
Description:
Zhongzhi JET-L series self-priming
pumps are highly efficient jet pumps with excellent suction even with
air bubbles. The pump consists of a single impeller, centrifugal
pump, and jet pipe with a nozzle. It can work for a long time and
produce little noise. Moreover, it is portable and has much use.
Pump
Pump Body: Cast iron/Brass/Stainless steel
Impeller: Brass/P.P.O
Mechanical Seal: Carbon/Ceramic/Stainless steel
Diffuser Nozzle: P.P.O
Jetpipe: P.P.O
DIEEUSSOR :P.P.O/Cast Iron
Motor
Single Phase
Heavy-Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel / Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External Ventilation
Construction and safety standards in compliance with IEC
220V/50HZ.60HZ 110V/50HZ.60HZ 220v.110v/50hz.60hz is available on
request.
Technical data:
| Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. |
| HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) |
| JET-100L | 1 / 0.75 | 4.8 | 2850 | 52 | 50 | 9 | 1"x1" | 480x210x220 | 17 |
Other voltages and frequencies available on request
Applications:
These series pumps are particularly suitable for water supply in
domestic installations, small-scale agriculture watering, and a
self-priming operation is demanded. You can use it at any place
where water pressure needs to be a boost.
Advantages:
1. We offer a one-year warranty.
2. the copper is 100% high-quality copper.
3. Cold-rolled silicon steel sheet by a high-speed punching machine
4. The bearing is good-quality, the surface is smooth, and the
dimension is precise.
5. The thermal protector is considerate.
Selp Priming Pump Working conditions:
- Suction head up to 9m
- Liquid temperature up to +60℃
- Ambient temperature up to +40℃
- Max. Working pressure: 10bar
- Voltage fluctuation should not exceed 10% of the rated value.
tructural characteristics:
| Main Specification | Standard | Optional |
| Transmission medium | Clean Water | |
| Pump body | Cast Iron | |
| Impeller | Brass | Noryl PPO |
| Motor housing | Aluminum | |
| Stator&Rotor | 1.Cold-rolled silicon steel sheet by the high-speed punching
machine. 2. 100% high-quality copper wire |
| Front cover | Cast Iron | |
| Bearing | Chinese Best Quality Bearing | NSK, SKF, or on request |
| Mechanical seal | Graphene/Ceramic | Silicon Carbon |
| Shaft | Carbon Steel | Stainless Steel |
| Insulation | Class B | Class F |
| Protection | IP44 | IP54 |
| Voltage | 220-240V Single Phase | On Request |
| Frequency | 50HZ | 60HZ |
| Thermal protection | No | Yes |
| Automatic Pressure Control System | No | Yes |
| Cooling Type | External Ventilation | |
| Max. Suction lift | 9M | |
| Max. Fluid Temperature | +60℃ | |
| Max. Environment Temperature | +40℃ | |
| Installation | Horizontal | |
| Connect Type | Thread | |
| CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC |
Guarantee:
Guarantee for one year from shipped on board date. During the
guarantee period, our company will provide free easy-damaged spare
parts for problems caused by our quality of production or raw
material, except the damageable spare parts caused by the
customer's incorrect artificial operation. In addition, after
expiration, our company provides cost spare parts for maintenance.
Our service:
1). We are happy that the customer gives us some suggestions for
the price and products.
2). Any questions, please let us know first by E-mail or Telephone.
We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying
and paying processes.
4). Deliver goods to our customers all over the world with speed
and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM
FAQ:
1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.
2) Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators
since 2006.
3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEM is welcome!
4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6). Q: How about the warranty?
1 year.
