    Generator Easy Spare Parts Circuit Diagram board Stabilizer Automatic Voltage Regulator AVR SX460

    Ask Lasest Price
    Brand Name : ZOZHI
    Model Number : SX460
    Certification : CE, ISO9001
    • Product Details
    • Company Profile

    Generator Easy Spare Parts Circuit Diagram board Stabilizer Automatic Voltage Regulator AVR SX460

    Generator Easy Spare Parts Circuit Diagram board Stabilizer Automatic Voltage Regulator AVR SX460


    Product Description


    DescriptionAVR SX460 For Stamford Generator
    Place of originFUAN
    INPUT
    Voltage

    Jumper selectable

    95-132V ac or 190-264V ac

    Frequency50-60 Hz nominal
    Phase1
    OUTPUT
    Voltagemax 90V dc at 207V ac input
    Current

    continuous 4 A dc

    Intermittent 6 A for 10 secs

    Resistance15 ohms minimum
    REGULATION+/-1.0% (see note 1)
    THERMAL DRIFT0.05% per deg.C change in AVR ambient (note 2)
    TYPICAL SYSTEM RESPONSE
    AVR response20ms
    Filed current to 90%80ms
    Machine Volts to 97%300ms
    EXTERNAL VOLTAGE ADJUSTMENT

    +/-10% with 1 k ohm watt trimmer

    (see note 3)

    UNDER FREQUENCY PROTECTION
    Setpoint95% Hz (see note 4)
    Slope170% down to 30Hz
    UNIT POWER DISSIPATION10 watts maximum
    BUILD UP VOLTAGE4 Volts@AVR terminal
    ENVIRONMENTAL
    Vibration

    20-100Hz 50mm/sec

    100Hz 2kHz 3.3g

    Operating temperature-40℃ to +70℃
    Relative Humidity 0-7095% (see note 5)
    Storage temperature-55℃ to +80℃

    Note:

    1. With 4% engine governing.

    2. After 10 minutes.

    3. Applies to Mod status F onwards. Generator de-rate may apply. Check with the factory.

    4. Factory set, semi-sealed, jumper selectable.

    5. Non condensing.

    3 Phase Generator AVR Automatic Voltage Regulator AVR SX460 is a half-wave phase-controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under-speed and sensing loss protection to ensure safe, reliable control of the generator. Positive voltage builds up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed-loop control of the output voltage with load regulations of +/- 1.5%

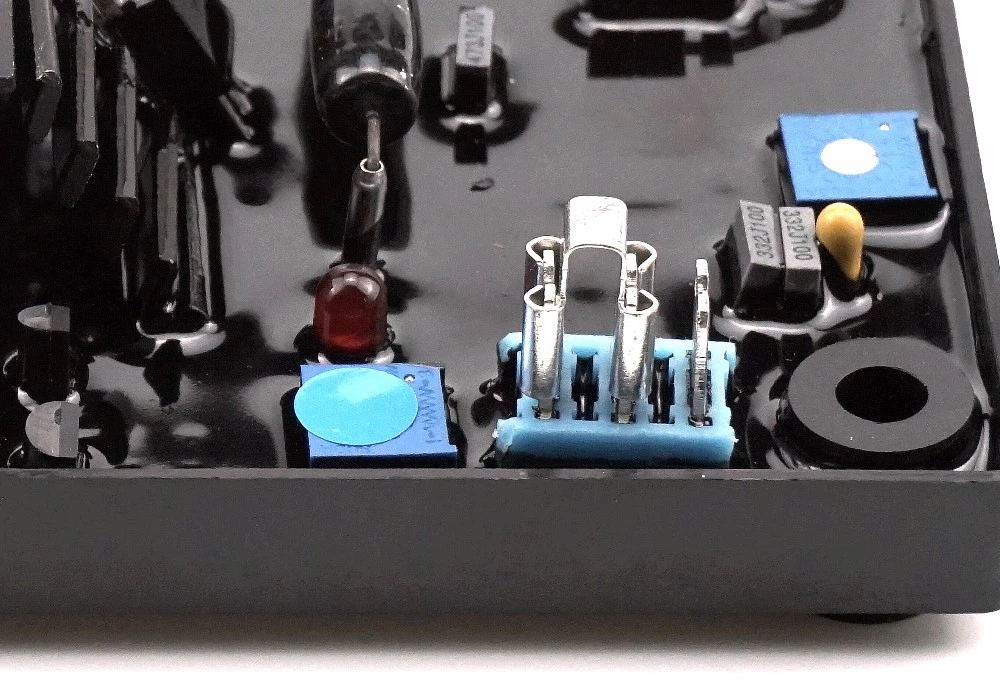

    Adopting Best Component Only

    ZOZHI never compromise the quality, focus on details

    Each component is strictly tested before assembling.

    Using importing or Chinese best resistance to ensure high performance.


    Perfect Appearance

    11-year production experiences, over 10 times the mold improved, makes the body and parts a perfect match.

    Nice outside and strong inside.

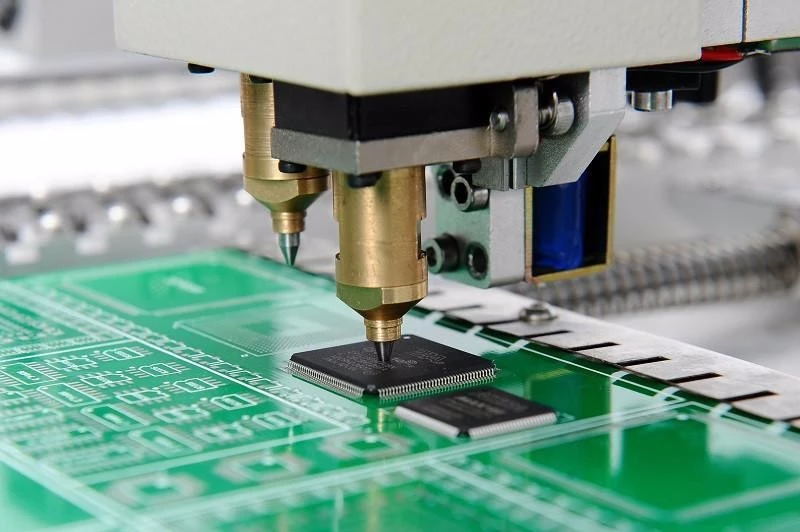

    Advanced equipment

    The factory used advanced equipment to produce, assemble, and inspect the AVR. To ensure the high accuracy


    More Products


    AVR R448AVR AS440MX321MX341
    AS440AS480GAVR12 GAVR 12EA05A
    R449R220R438R450

    SX460

    Guarantee:

    Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.


    Our Service:

    1. Free maintenance within 12 months guarantee.
    2. We cooperate with customers to design and develop a new product.
    3. We'd like to assist you in arranging delivery things, test things, or others on your request.
    4. Customize production.
    1. We are a professional manufacturer with more than 13 years experience in Electric motor
    2. We are Made in China Gold Supplier
    3.we test the material before production and three to four times when producing to ensure the goods in good quality, also we produce according to request
    4.we can be your OEM manufacturer with your authorization of the brand.


    FAQ:


    1. Q: What’s the MOQ?
    A: We accept one piece.

    2. Q: Are you a factory or trading company?
    A: We are a manufacturer.

    3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.

    4. Q: What’s the warranty period?
    A: 1 year.


    5. Q: What are the terms of payment?

    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
