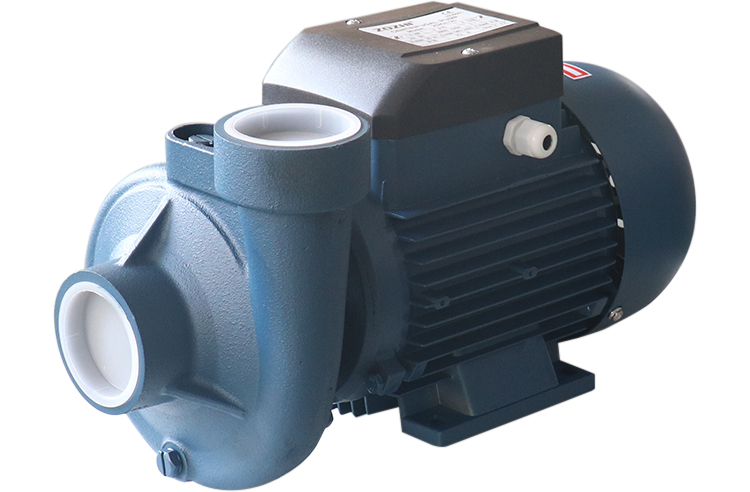

House Use Small Electric Motor Driven Water Pump Dkm Series One
Year Warranty
Electric Motor Water Pump RANGE OF PERFORMANCE
8Flow rate up to 280 l/min (22.8m3/h)
8Head up to 20m
Electric Motor Water Pump LIMITS OF USE
8Manometric suction lift to 9m
8Liquid temperature up to +60°C
8Environment temperature up to +40°C
INSTALLATION AND USE
8These pumps are suitable for handling clean water without abrasive particles
and liquids that are chemically non-aggressive to the pump
components. Reliable, economical, and simple to use, they are
suitable for domestic use and, in particular, for distributing
water in combination with small pressure sets for irrigating
gardens. The pumps must be installed in a covered area, protected
against inclement weather.
Electric Motor Water Pump APPLICATIONS
a) Apply to industrial drainage
b) Apply to agricultural irrigation
c) Widely used in well water lifting, garden irrigation, vegetable
greenhouse water supply, breeding industry water supply, and
drainage, pipeline boosting, etc
d) Long distant water supply
e) Suitable for hotel
TECHNICAL DATA
| Model | Output | A | R.P.M. | Q.Max | H.Max | S.Head | Pipe Dia | LxWxH | N.W. |
| HP / KW | 1~220V | (l/min) | (m) | (M) | (mm) | (Kg) |
| 1.5DKM-16 | 0.75 / 0.55 | 4 | 2850 | 180 | 16 | 9 | 1.5"x1.5" | 320x180x210 | 9.9 |
| 1.5DKM-20 | 1 / 0.75 | 4.8 | 2850 | 240 | 20 | 9 | 1.5"x1.5" | 320x180x210 | 12 |
| 2DKM-16 | 1.5 / 1.1 | 6.2 | 2850 | 480 | 21 | 9 | 2"x2" | 380x235x250 | 23 |
| 2DKM-20 | 2.0 / 1.5 | 9.4 | 2850 | 540 | 23 | 9 | 2"x2" | 380x235x250 | 25 |
Other voltages and frequencies available on request
STRUCTURAL CHARACTERISTICS
| Main Specification | Standard | Optional |
| Transmission medium | Clean Water, sewage water, and fluids | |
| Pump body | Cast Iron | |
| Impeller | Brass with a centrifugal radial flow | |
| Motor housing | Aluminum | |
| Stator&Rotor | 1. Cold-rolled silicon steel sheet by a high-speed punching
machine. 2. 100% high-quality copper wire |
| Front cover | Cast Iron | |
| Bearing | Chinese Best Quality Bearing | NSK, SKF, or on request |
| Mechanical seal | Graphene/Ceramic | Silicon Carbon |
| Shaft | Carbon Steel | Stainless Steel |
| Insulation | Class B | Class F |
| Protection | IP44 | IP54 |
| Voltage | 220-240V Single Phase | On Request |
| Frequency | 50HZ | 60HZ |
| Thermal protection | No | Yes |
| Automatic Pressure Control System | No | Yes |
| Cooling Type | External Ventilation | |
| Max. Suction lift | 9M | |
| Max. Fluid Temperature | +60℃ | |
| Max. Environment Temperature | +40℃ | |
| Installation | Horizontal | |
| Connect Type | Thread | |
| CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC |
ADVANTAGE
100% high-quality copper,100% output
Cold-rolled silicon steel sheet by a high-speed punching machine
Good quality bearing, the surface more smooth, the dimension more
precise
Thermal protector
It has advantages of high efficiency, saving energy, low noise,
reliable performance.
OUR SERVICE
1). We are happy that the customer gives us some suggestions for
price and products.
2). Any questions, please let us know it in the first by E-mail or
Telephone. We can deal with them for you in time.
3). Offer our customers the lowest prices. Streamline the buying
and paying processes.
4). Deliver goods to our customers all over the world with speed
and precision.
5). Ensure the excellent quality of our products.
6). 12 months FREE warranty.
7). Accept OEM
Electric Motor Water Pump Guarantee:
Guarantee for one year from shipped on board date. During the
guarantee period, our company will provide free easy-damaged spare
parts for problems caused by our quality of production or raw
material, except the damageable spare parts caused by the
customer's incorrect artificial operation. In addition, after
expiration, our company provides cost spare parts for maintenance.
FAQ
1). Q: How about the MOQ?
A: Usually, it is 50 PCS for each model.
2). Q: Are you a factory or a trading company?
A: we make water pumps, motors, alternators, and diesel generators
since 2006.
3). Q: Can you accept to use our logo?
A: Yes, we can. Any OEMs are welcome!
4). Q: What are your payment terms?
A: 30% deposit by T/T in advance, pay 70% balance against B/L copy.
5). Q: How about the delivery time?
A: Usually, 10-30days. But it depends on your order quantity.
6). Q: How about the warranty?
A: 1 year from shipped on board date.
