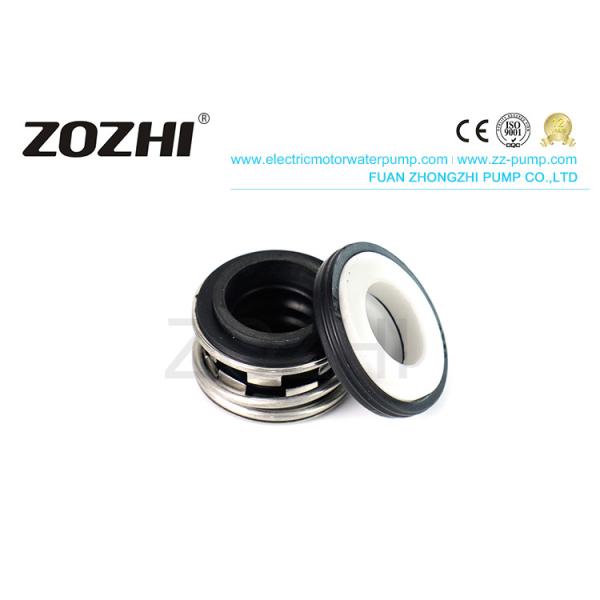

Single Face Unbalanced Mechanical Seal For All Types Of Rotating
Equipment
Design Features
- Single face, single spring, unbalanced, rubber bellows structure.
- The seal face is driven through the spring seal, rubber bellows
design to avoid torsion.
- The installation size conforms to the standard for ISO3069 and
DIN24960.
Applications
Used in all types of rotating equipment, pumps, mixers, agitators,
and compressors. To suit industries such as general chemical, oil
refining, petrochemical, pharmaceutical, food processing, pulp and
paper, and wastewater treatment.
Medium
Oil, water, and other weak corrosive fluid.
Materials
| Rotating Ring | Carbon, SIC, TC |
| Stationary Ring | Sic, TC |
| Auxiliary Seal | NBR/ Viton |
| Spring & Other Parts | SUS304/ SUS316 |
Materials should be selected according to the operation condition

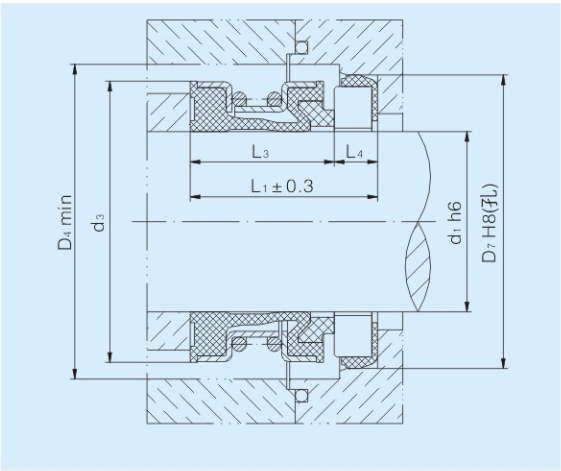

Size Information
| Model | d1 | d3 | D4 | D7 | L1 | L3 | L4 |
| 2100-10 | 10 | 20 | 22 | 21 | 20 | 15 | 5 |
| 2100-12 | 12 | 22 | 24 | 23 | 21 | 15 | 6 |
| 2100-14 | 14 | 24 | 26 | 25 | 21 | 15 | 6 |
| 2100-15 | 15 | 25 | 27 | 26 | 21 | 15 | 6 |
| 2100-16 | 16 | 26 | 28 | 27 | 21 | 15 | 6 |
| 2100-18 | 18 | 32 | 34 | 33 | 26 | 20 | 6 |
| 2100-20 | 20 | 34 | 36 | 35 | 26 | 20 | 6 |
| 2100-22 | 22 | 36 | 38 | 37 | 26 | 20 | 6 |
| 2100-24 | 24 | 38 | 40 | 39 | 26 | 20 | 6 |
| 2100-25 | 25 | 39 | 41 | 40 | 26 | 20 | 6 |
| 2100-28 | 28 | 42 | 44 | 43 | 32 | 26 | 6 |
| 2100-30 | 30 | 44 | 46 | 45 | 33 | 26 | 6 |
| 2100-32 | 32 | 46 | 48 | 48 | 33 | 26 | 7 |
| 2100-33 | 33 | 47 | 49 | 48 | 33 | 26 | 7 |
| 2100-35 | 35 | 49 | 51 | 50 | 34 | 26 | 7 |
| 2100-38 | 38 | 54 | 58 | 56 | 38 | 30 | 8 |
| 2100-40 | 40 | 56 | 60 | 58 | 38 | 30 | 8 |
| 2100-43 | 43 | 59 | 63 | 61 | 38 | 30 | 8 |
| 2100-45 | 45 | 61 | 65 | 63 | 38 | 30 | 8 |
| 2100-48 | 48 | 64 | 68 | 66 | 40 | 30 | 8 |
| 2100-50 | 50 | 66 | 70 | 70 | 40 | 30 | 10 |
| 2100-53 | 53 | 69 | 73 | 73 | 40 | 30 | 10 |
| 2100-55 | 55 | 71 | 75 | 75 | 40 | 30 | 10 |
| 2100-58 | 58 | 78 | 83 | 78 | 43 | 33 | 10 |
| 2100-60 | 60 | 80 | 85 | 80 | 45 | 33 | 12 |
| 2100-63 | 63 | 83 | 88 | 83 | 45 | 33 | 12 |
| 2100-65 | 65 | 85 | 90 | 85 | 45 | 33 | 12 |
| 2100-68 | 68 | 88 | 93 | 90 | 45 | 33 | 12 |
| 2100-70 | 70 | 90 | 95 | 92 | 45 | 33 | 12 |
| 2100-75 | 75 | 99 | 104 | 97 | 52 | 40 | 12 |
