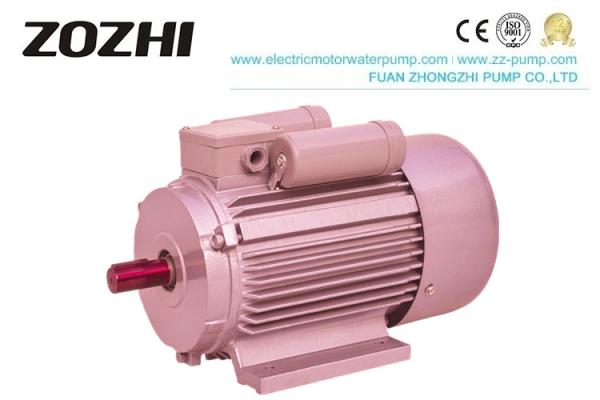

YC Double Capacitor Single Phase Motor, 3KW 4HP AC Electric Motor 4
Pole IP54
Single Phase Induction Motor
YC series heavy-duty capacitor start and run, single-phase induction
motors are suitable for driving small-size turning machines,
especially suitable for households and workshops where only need
single-phase power be supplied. This series of motors are designed
with advanced techniques and made of quality materials. It also has
the following features: low noise, low temperature rise, small
starting current, high starting torque, reliable operation, easy
maintenance, and a nice appearance. They also meet the relative
standards of IEC.
Models | YC132SA-4 |  |
Brand Name: | ZOZHI |
Output Power: | 3KW/4HP |
Phase: | Single-phase |
Protect Feature: | Totally Enclosed |
Housing: | Cast Iron housing |
Winding: | 100% Copper Wire |
Insulation class: | Class B, Class F |
Protection class: | IP44, IP54, IP55 |
Cooling Method: | IC0141 |
| Application | Grain Flatting Machine |
What is a grain flattening machine
♦ The grain flattening machine can press wheat, barley, soybeans,
beans, coffee bean, peanuts into a thin sheet or crushed into small
particles. It will be easy for porridge or soup, easy to mature,
digest, and absorb.
♦ It is widely used in the food industry, chemical industry,
wine-making industry, beer factory, medicine manufacturer.
♦ It retains the original taste and nutrients, improves the
utilization rate of the grain feed, it also used for large and
medium-sized farms.
Performance Chart:
| Model | Output HP KW | Voltage
(V) | Current
(A) | Speed
(r/min) | Eff
(%) | Power
Factor | Tstart/Tn | Ist/In | Tmax/Tn |
| 220V 5OHz Synchronous Speed 3000r/min (2 Poles) |
| YC80A-2 | 0.5 | 0.37 | 220 | 3.5 | 2880 | 62 | 73.8 | 2.8 | 6.2 | 1.8 |
| YC80B-2 | 0.75 | 0.55 | 220 | 5.3 | 2880 | 65 | 76.5 | 2.8 | 6.5 | 1.8 |
| YC80C-2 | 1 | 0.75 | 220 | 6.7 | 2880 | 68 | 77.5 | 2.8 | 6.5 | 1.8 |
| YC90S-2 | 1.5 | 1.1 | 220 | 9.1 | 2880 | 71 | 79.7 | 2.4 | 7.0 | 1.8 |
| YC100L-2 | 2 | 1.5 | 220 | 11.4 | 2900 | 72 | 81.3 | 2.4 | 7.0 | 1.8 |
| YC-112M-2 | 3 | 2.2 | 220 | 16.5 | 2900 | 74 | 84.8 | 2.1 | 7.0 | 1.8 |
| YC112M1-2 | 4 | 3 | 220 | 21.4 | 2900 | 76 | 84.9 | 2.2 | 7.0 | 1.8 |
| YC112M2-2 | 5 | 3.7 | 220 | 24.8 | 2900 | 79 | 85.5 | 2.2 | 7.0 | 1.8 |
| 220V 5OHz Synchronous Speed 1500r/min (4 Poles) |
| YC80A-4 | 0.33 | 0.25 | 220 | 3.4 | 1450 | 56 | 0.6 | 2.8 | 6.0 | 1.8 |
| YC80B-4 | 0.5 | 0.37 | 220 | 4.5 | 1450 | 60 | 0.62 | 2.8 | 6.0 | 1.8 |
| YC80C-4 | 0.75 | 0.55 | 220 | 6 | 1450 | 64 | 0.65 | 2.8 | 6.0 | 1.8 |
| YC90S-4 | 1 | 0.75 | 220 | 7.7 | 1450 | 67 | 0.66 | 2.4 | 6.5 | 1.8 |
| YC90L-4 | 1.5 | 1.1 | 220 | 10.4 | 1450 | 70 | 0.68 | 2.4 | 6.5 | 2.8 |
| YC100L-4 | 2 | 1.5 | 220 | 13.5 | 1450 | 72 | 0.7 | 2.4 | 6.5 | 1.8 |
| YC112M1-4 | 3 | 2.2 | 220 | 18.5 | 1450 | 72 | 0.72 | 2.4 | 6.5 | 1.8 |
| YC132SA-4 | 4 | 3 | 220 | 22.4 | 1450 | 74 | 0.73 | 2.1 | 6.5 | 1.8 |
| YC132SB-4 | 5 | 3.7 | 220 | 26 | 1450 | 75 | 0.74 | 2.1 | 6.5 | 1.8 |
| YC132M-4 | 7.5 | 5 | 220 | 30.5 | 1450 | 81 | 0.95 | 2.1 | 6.5 | 1.8 |
Single Phase Induction Motor Guarantee:
Guarantee for one year from shipped on board date. During the
guarantee period, our company will provide free easy-damaged spare
parts for problems caused by our quality of production or raw
material, except the damageable spare parts caused by customer's
incorrect artificial operation. In addition, after expiration, our
company provides cost spare parts for maintenance.
Our Service:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services
from designing, printing to processing. Customers can provide the
design according to your request and sample making. Also, we can
advise how to make the products according to customers' target
prices.
FAQ:
1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at
sight.
