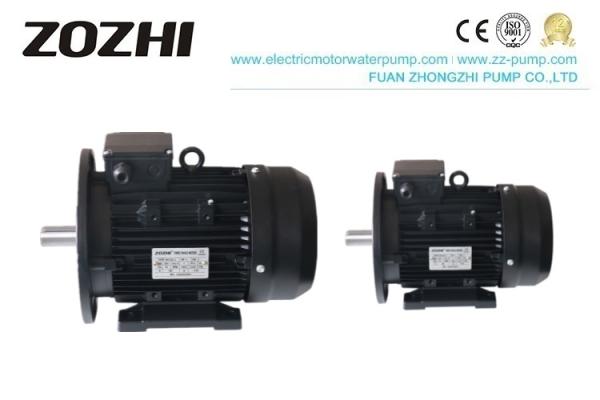

MS100L1-4 Aluminum 2.2KW 3HP Three Phase Ac Motor

Ask Lasest Price
Brand Name :	ZOZHI
Model Number :	MS100L1-4
Certification :	CE,ISO
Price :	$37.3~$45.5
Payment Terms :	L/C, T/T, MoneyGram
Supply Ability :	10000pcs/month
Delivery Time :	25 working days after received your payment

Add to Cart

Product Details
Company Profile

MS100L1-4 Aluminum 2.2KW 3HP Three Phase Ac Motor

MS Series Aluminum Housing Three Phase Ac Motor 2.2KW/3HP

3 Phase Induction Motor

Products Description

MS series ac motor is a very general classification, the types of motor itself are very big, the ac motor itself can also point with high
the speed at low speed, low speed can be called a low-speed motor, ac motor at low speed, high speed can be called a high-speed motor,ac high-speed motor, and high-speed motor can be called a motorized spindle, high speed motorized spindle, and so on.

A three-phase asynchronous motor is powered by access to a 380V three-phase ac power supply (phase difference of 120 degrees) at the same time. Because the rotor of the three-phase asynchronous motor and stator rotating magnetic field rotates in the same direction at different speeds, there is slip, so it is called the three-phase asynchronous motor.

Insulated motor	Temperature limit (ºC)	Limit of temperature rise
B	130	80K
F	155	105K
H	180

Technical data

Model	Power		(V)	(HZ)	Current (A)	Power Factor	Eff (%)	Speed (r/min)	Tstart/ Tn	Tmax/ Tn	Ist/ In
	HP	KW
MS561-2	0.12	0.09	380	50	0.3	0.76	60	2750	2.3	2.4	6
MS562-2	0.16	0.12			0.37	0.78	63	2750	2.3	2.4	6
MS631-2	0.25	0.18			0.53	0.75	69	2800	2.2	2.4	4.5
MS632-2	0.33	0.25			0.68	0.78	72	2800	2.2	2.4	4.5
MS711-2	0.5	0.37			0.98	0.8	73	2800	2.2	2.4	4.5
MS712-2	0.75	0.55			1.35	0.82	75	2800	2.2	2.4	4.5
MS801-2	1	0.75			1.75	0.85	76	2800	2.2	2.4	4.5
MS802-2	1.5	1.1			2.55	0.85	77	2800	2.2	2.4	4.5
MS90S-2	2	1.5			3.36	0.87	78	2800	2.2	2.4	4.5
MS90L-2	3	2.2			4.93	0.87	78	2800	2.2	2.4	5
MS100L-2	4	3			6.31	0.87	83	2880	2.3	2.4	7
MS112M-2	5.5	4			8.12	0.88	85	2890	2.3	2.4	7
MS132S1-2	7.5	5.5			11	0.88	86	2900	2.3	2.4	7
MS132S2-2	10	7.5			14.9	0.88	87	2900	2.3	2.4	7
MS160L-2	25	18.5			34.7	0.9	90	2930	2.3	2.4	7
MS561-4	0.08	0.06			0.27	0.68	50	1300	2.2	2.3	5.5
MS562-4	0.12	0.09			0.36	0.7	54	1300	2.2	2.3	5.5
MS631-4	0.16	0.12			0.48	0.63	60	1400	2.2	2.4	4.5
MS632-4	0.25	0.18			0.65	0.66	64	1400	2.2	2.4	4.5
MS711-4	0.33	0.25			0.83	0.68	67	1400	2.2	2.4	4.5
MS712-4	0.5	0.37			1.12	0.72	69	1400	2.2	2.4	4.5
MS801-4	0.75	0.55			1.56	0.73	73	1400	2.2	2.4	4.5
MS802-4	1	0.75			2.01	0.75	75	1400	2.2	2.4	4.5
MS90S-4	1.5	1.1			2.83	0.78	76	1400	2.3	2.4	5
MS90L-4	2	1.5			3.84	0.78	76	1400	2.2	2.4	5
MS100L1-4	3	2.2			4.2	0.75	75	1400	2.2	2.4	5
MS100L2-4	4	3			6.78	0.82	82	1410	2.3	2.4	7
MS112M-4	5.5	4			8.82	0.82	84	1435	2.3	2.4	7
MS132S-4	7.5	5.5			11.8	0.83	85.5	1445	2.3	2.4	7
MS132M-4	10	7.5			15.6	0.84	87	1445	2.3	2.4	7
MS711-6	0.24	0.18			0.74	0.66	56	900	2	2.2	5.5
MS712-6	0.33	0.25			0.95	0.68	59	900	2	2.2	5.5
MS801-6	0.5	0.37			1.3	0.7	62	900	2	2.2	5.5
MS802-6	0.75	0.55			1.79	0.72	65	900	2	2.2	5.5
MS90S-6	1	0.75			2.29	0.72	69	910	2.1	2.2	5.5
MS90L-6	1.5	1.1			3.18	0.73	72	910	2.1	2.2	5.5
MS100L-6	2	1.5			3.89	0.76	76	940	2.1	2.2	5.5
MS112M-6	3	2.2			5.57	0.76	79	940	2.2	2.3	6.5
MS132S-6	4	3			7.4	0.76	81	960	2.2	2.3	6.5
MS132M1-6	5.5	4			9.75	0.76	82	960	2.2	2.3	6.5
MS132M2-6	7.5	5.5			12.9	0.77	84	960	2.2	2.3	6.5

125K

Reviews from the client:

Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy
